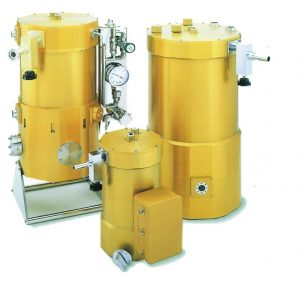

Bolometers, those ingenious devices that detect radiation by measuring the heat a material generates, have been a staple in various scientific and industrial applications for years. From thermal imaging and spectroscopy to plasma physics and astronomy, bolometers play a crucial role in many fields. The ongoing quest for higher sensitivity and faster response times has led to some remarkable advancements, and in this post, we’ll delve into the latest developments in bolometer fabrication and design.
New Materials: The Game Changers
One of the key drivers behind the advancement of bolometer technology is the development of new materials. Traditional materials like vanadium oxide (VOx) and doped amorphous silicon (a-Si) have been widely used due to their high-temperature coefficients of resistance. However, recent research has shifted focus towards more promising alternatives.
Polymorphous silicon-germanium alloys, for instance, offer higher temperature coefficients of resistance compared to doped amorphous silicon and are fully compatible with standard silicon CMOS processes. This compatibility allows for the fabrication of large arrays in conventional silicon CMOS facilities, significantly enhancing the performance characteristics of the bolometers.
Novel materials such as graphene, carbon nanotubes, and superconductors are also being explored for their potential to further enhance sensitivity and response speed. These materials are particularly beneficial in applications requiring precise temperature measurements and non-contact sensing, such as in the automotive, aerospace, and healthcare industries.
Microfabrication Techniques: Precision Engineering
Advances in microfabrication techniques have been instrumental in improving the sensitivity and speed of bolometers. Techniques like plasma-enhanced chemical vapor deposition (PECVD) at low temperatures enable the deposition of thin films with minimal defects. This method is crucial for fabricating microbolometer arrays with high pixel density and uniformity.
For example, the fabrication of microbolometer arrays using polymorphous silicon-germanium alloys involves depositing a thermosensing film by PECVD, followed by dry-etching techniques to pattern the film. This process ensures a dense film with a low number of voids and defects, which is essential for achieving high detectivity values.
The integration of Fabry-Perot resonant cavities, such as those formed using polyimide layers, also enhances the absorption of infrared radiation. By tuning the polyimide thickness to match the desired wavelength, these cavities significantly improve the sensitivity of the bolometers, making them more effective in applications like thermal imaging and spectroscopy.
Noise Reduction Strategies: Minimizing Interference
Noise reduction is a critical aspect of bolometer design, as it directly affects the sensitivity and accuracy of the device. Fixed pattern noise (FPN) is a common issue in bolometer-type uncooled infrared image sensors, which can be mitigated using advanced techniques.
One such technique is the averaging pixel current adjustment method, which involves adjusting the current of each pixel to reduce FPN. This method has been shown to significantly improve image quality by minimizing variations in pixel responses, thereby enhancing the overall detectivity of the bolometer array.
Optimizing the readout integrated circuit (ROIC) design is another approach to reduce noise. Model-based low-noise ROIC designs and innovative pixel-level packaging techniques have been developed to minimize impedance problems and reduce the noise floor. For instance, a 100mK-NETD micro-bolometer CMOS thermal imager with a low noise level of 21.89 μV rms has been achieved through such optimizations.
Applications and Future Directions
The advancements in bolometer technology have far-reaching implications across various scientific fields. In plasma physics, bolometers are used to measure the radiation emitted by plasmas, which is crucial for understanding plasma behavior and optimizing plasma confinement in fusion reactors. The ability to detect soft X-rays and plasma radiation with high sensitivity and speed is essential for these applications.
In astronomy, bolometers are employed in telescopes to detect faint infrared signals from distant objects. The improved sensitivity and faster response times of modern bolometers enable astronomers to gather more precise data, leading to new discoveries and a deeper understanding of the universe.
Market Outlook and Growth
The global bolometer market is experiencing significant growth, driven by the increasing demand for infrared sensors across various applications. The market is projected to expand rapidly, with a compound annual growth rate (CAGR) of around 9% over the next few years. This growth is attributed to the rising adoption of advanced driver assistance systems (ADAS) in the automotive sector and the increasing use of infrared imaging in security and surveillance applications.
The Asia Pacific region is expected to be a major driver of this growth, with a CAGR of around 11%. This rapid growth is due to the increasing adoption of advanced technologies in various industries.
Advances in Bolometry
The advancements in bolometer technology are transforming the landscape of various scientific and industrial fields. New materials, advanced microfabrication techniques, and innovative noise reduction strategies are pushing the limits of sensitivity and speed in bolometer design.
As research continues to evolve, we can expect even more sophisticated bolometers that will enable new discoveries and applications. Whether it is measuring the temperature of plasmas in fusion reactors, detecting soft X-rays in astronomical observations, or enhancing thermal imaging in security applications, the future of bolometer technology holds immense promise.
The ongoing quest for higher sensitivity and faster response times in bolometers is not just about technological advancement; it is about unlocking new possibilities in science and industry, and it is an exciting journey that we are eager to continue exploring.
